Stereoping

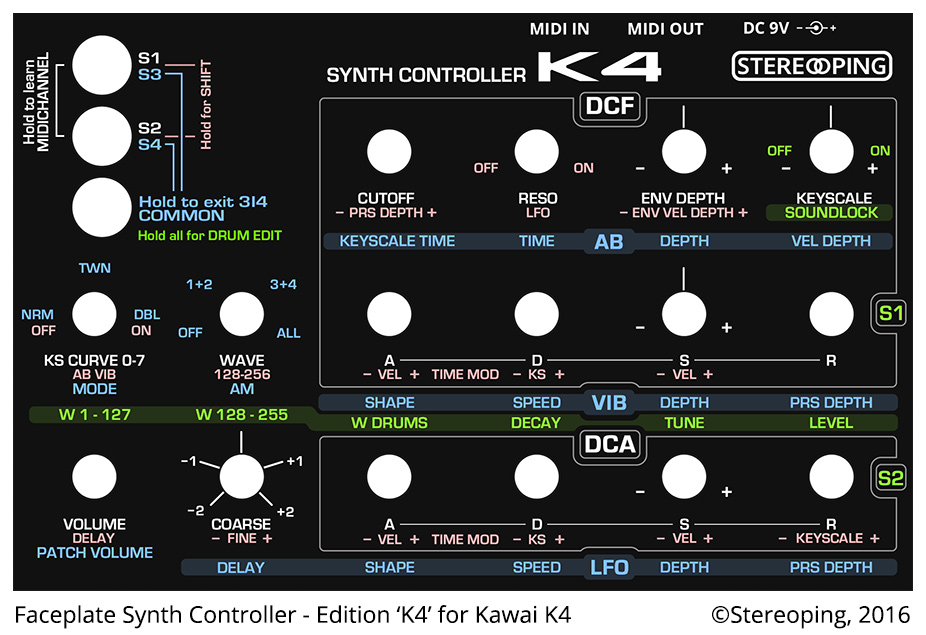

Kawai k4 Hardware Synth Controller

It is a Universal hardware Synth Controller and with
a midi patch you can make this a K4 midi Controller.
Stereoping.com > Synth-Controller(eng)

klick for full pic
Stereoping.com >K4 Manual & Controller List(eng)

This how it looks like with the Kawai K3M (older model)


KAWAI LOGO 2

pic02

KAWAI - K4 / K4r Specifications
Name : K4 / K4r
Factory : KAWAI
Type : Polyphone Synthesizer (digital)
Sound System : 16 Bits PCM & DC Waves (total 256 Waves)
Multimode : 8 & 1 Drum Bank
Max Polyphony : Normal : 16 / Twin & Double : 8 (32 Sources)
Effects : Chorus, Reverb, Distortion, Delay, Flanger (K4 only)
Sounds : 64 Sounds : 4 Banken with 16 Sounds
Drums : 61 DrumSounds
Stored sounds : 8 MB
Panel Controls & Jacks : Write SW,Power SW, DC in, Output Stereo L/R (Mono)(K4r + 1-6), (K4 : Wheel x 2), Phone Jack, Card Slot, MIDI-IN/OUT/THRU
Keyboard K4 : 61 : 5 Octave, WEIGHTED, w/Attack & Release Velocity and Aftertouch Pressure
Program Memory : Internal & DC-16 Memory Card : 128 (64 Single / 64 Multi) + 61 Drum
Dimensions (mm) : K4 : 1020(w)x310.8(d)x88.5(h) K4r : 483(w)x218.5(d)x88(h)
Weight : K4 : 7.3 kg / K4r : 2.8 kg
Power Consumption : K4 : 5.8 w / K4r : 6.8 w
Midi Implementation : 1..16 midi channel / 1..127 Notenum / After Touch / Pitch Bender / Control Change : Modulation (1), Volume (7), Hold 1 (64), RPC (101), Data Entry (6) / Prog Change 1..127 / System Exclusive / Aux Messages : Local ON/OFF, All Notes OFF, Active Sense

KAWAI k4 dwrz


KAWAI LOGO 3


Kawai K4 Links :
